ä instead of ä: encoding, explained at the byte level

Every encoding bug is two sides disagreeing about bytes

Text doesn’t exist on disk or on the wire. Bytes do. An encoding is the agreement about which byte sequences mean which characters, and mojibake (the Japanese word for it, 文字化け, roughly “character transformation”) is what you see when the writer and the reader used different agreements. That’s the whole bug. Not corruption, not data loss, just a wrong lens.

Which is the encouraging part: in the classic ä case, the bytes are perfectly fine. Somebody wrote valid UTF-8 and somebody else read it as Latin-1. Swap the lens back and the original text reappears, unchanged. The cases where data actually died look different, and we’ll get to them (that’s the � section).

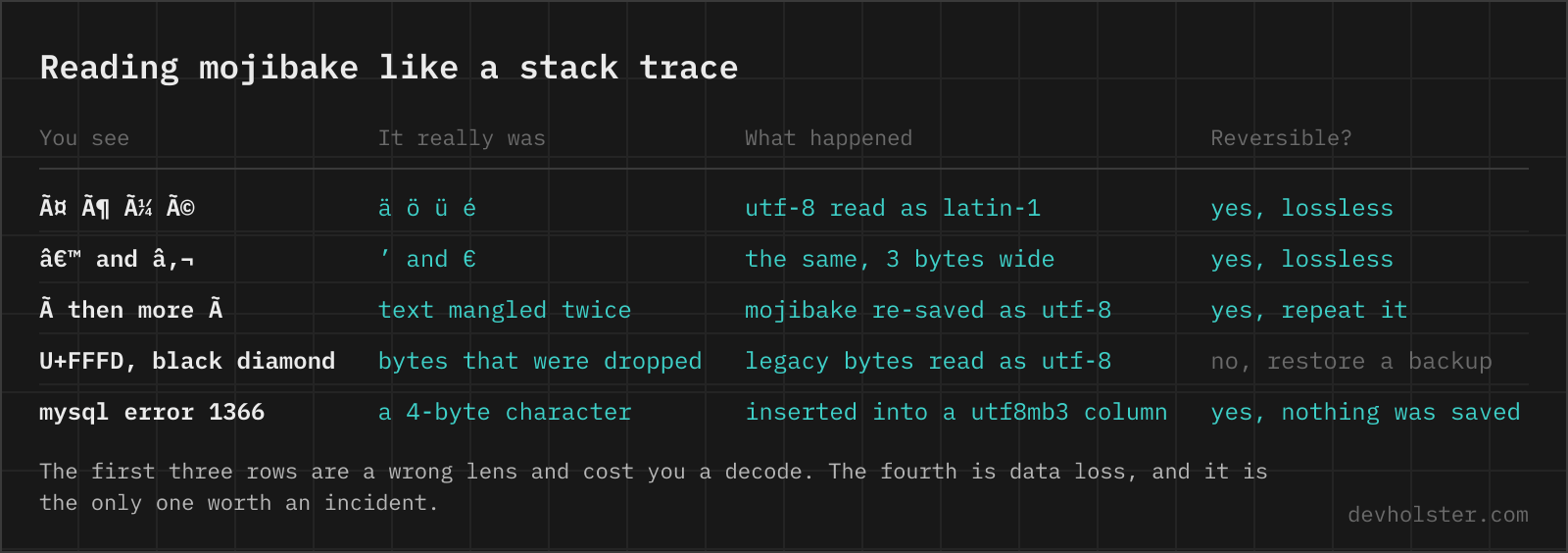

The useful skill is reading the garbage like a stack trace. Each mangling has a signature, and à followed by junk is the most common one on the web by a wide margin.

The byte math behind ä

Take ä, code point U+00E4. In UTF-8 every code point above 127 becomes multiple bytes. A two-byte sequence has the shape 110xxxxx 10xxxxxx, with 11 payload bits. E4 is 000 11100100 in binary; split into 5 + 6 bits and slot into the template:

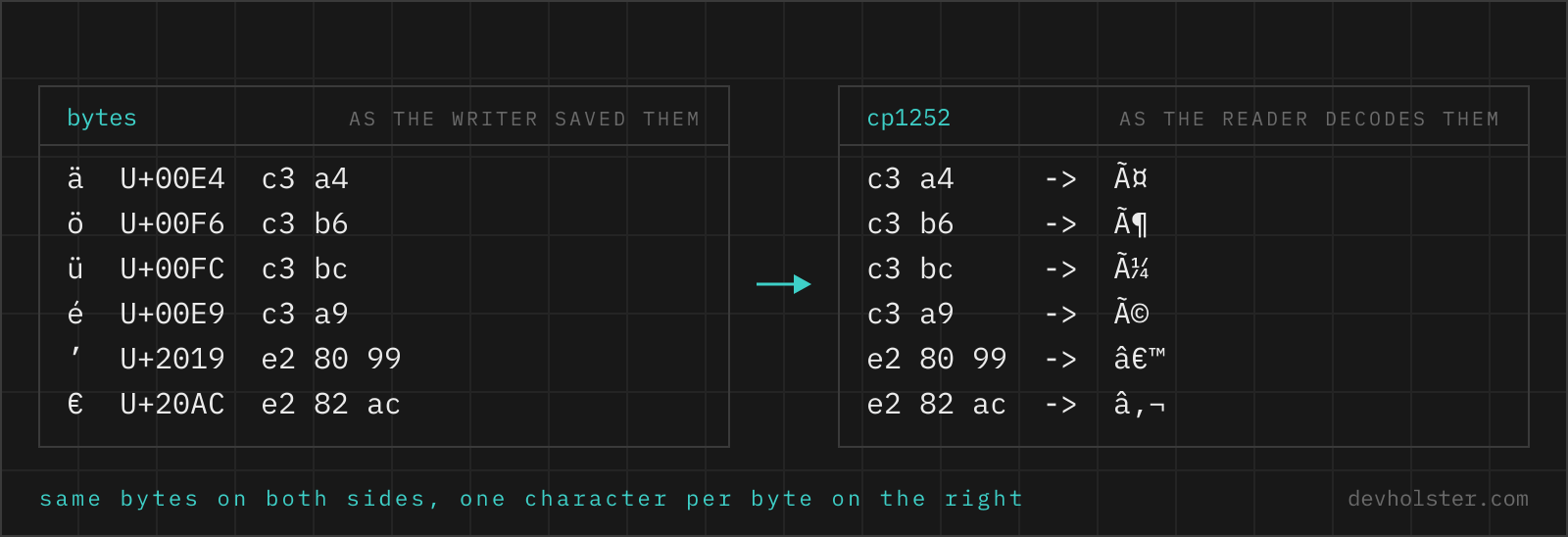

So ä on disk is C3 A4. Now read those two bytes with a decoder that thinks one byte equals one character. In Latin-1, 0xC3 is à and 0xA4 is ¤. Result: ä. Two characters where one was meant, and the first one is almost always Ã, because every German umlaut and most Western European accents live in the U+00C0 to U+00FF range, whose UTF-8 encoding starts with 0xC3.

That makes the pattern instantly recognizable: ö becomes ö, ü becomes ü, ß becomes ß, é becomes é. Three-byte characters mangle into three glyphs, which is why the curly apostrophe ’ (U+2019, bytes E2 80 99) turns into the famous ’. If you see à or †in output, you can state with confidence: UTF-8 bytes were decoded as Latin-1 or Windows-1252. No guessing needed.

Double encoding: when it happens twice

Sometimes you don’t see ä but ä. That’s the same accident applied twice. First round: C3 A4 misread as the two characters ä. Second round: some layer helpfully saves those two characters as UTF-8, so à (U+00C3) becomes C3 83 and ¤ (U+00A4) becomes C2 A4. Read those four bytes as Windows-1252 and you get Ã, ƒ, Â, ¤: four glyphs for one umlaut. Each round of this roughly doubles the length, and yes, we’ve seen triple-encoded text in a real customer database. It looked like modem line noise.

The good news holds: double encoding is still lossless. Reverse it mechanically, encode the garbage as Latin-1, decode as UTF-8, repeat until it stops changing. In Python that’s s.encode('latin-1').decode('utf-8') per round, and the ftfy library ("fixes text for you", by Robyn Speer) does the detection and unwinding automatically, including mixed cases where only half a file is mangled.

$ python3 -c "print('Müller'.encode('cp1252').decode('utf-8'))"
Müller

Fix the data and find the layer that lied about its encoding, or the table refills with garbage within a week. It’s usually a database connection charset or an HTTP header, not application code.

A placemat in New Jersey

UTF-8 is younger than you’d guess and was designed in one evening. In September 1992, Ken Thompson and Rob Pike were working on Plan 9 at Bell Labs when X/Open circulated a proposal for a Unicode byte encoding. Thompson sketched a better one on a placemat in a New Jersey diner; by Pike’s own account (a 2003 email he published, still online at Cambridge’s site), the design happened “in front of my eyes, on a placemat”, they were coding it that night, and the entire Plan 9 operating system ran on it by the end of the week. He also wrote that he wished they’d kept the placemat.

What Thompson’s bit-packing got right still carries the modern web:

• ASCII is valid UTF-8, byte for byte. Every ASCII file already was UTF-8. That single property is most of why UTF-8 won.
• It self-synchronizes. Continuation bytes always start with 10, lead bytes never do, so a parser dropped into the middle of a stream finds the next character boundary within one byte. ASCII bytes like / or " can never appear inside a multibyte sequence, so byte-oriented tools (grep, path parsing, C string handling) keep working.
• The lead byte announces the length. 110 means two bytes, 1110 three, 11110 four. Originally the scheme went up to six bytes; RFC 3629 capped it at four in 2003 to match Unicode’s U+10FFFF limit.

Adoption followed the design: W3Techs measures UTF-8 at 99.0% of all websites as of July 2026. The encoding wars are over. Mojibake survives only at the seams, wherever legacy defaults still lurk.

Windows-1252 vs ISO-8859-1: the 32 bytes that differ

The two legacy encodings you’ll actually meet get confused with each other constantly, and the entire difference sits in the range 0x80 to 0x9F. ISO-8859-1 puts control characters there (the C1 block, useless for text). Windows-1252 fills the same 32 slots with printable characters people actually type: the € sign at 0x80, curly quotes at 0x91 through 0x94, the dashes at 0x96 and 0x97, ™ at 0x99. Everywhere else the two are identical.

Browsers settled the argument by ignoring it: the WHATWG Encoding Standard requires that the labels iso-8859-1, latin1 and even us-ascii all decode as Windows-1252. Declare ISO-8859-1 on a web page and you get Windows-1252, period. That’s also why the ’ mangling shows a visible € and ™: bytes 0x80 and 0x99 have glyphs in Windows-1252 that plain ISO-8859-1 never had.

Practical takeaway for debugging: when mangled text contains €, ™ or curly quotes in weird places, the reader side was Windows-1252. When those positions come out blank or invisible, something decoded strict ISO-8859-1, which today usually means a programming language library rather than a browser.

The MySQL utf8 trap

MySQL has a charset named utf8 that is not UTF-8. It’s an alias for utf8mb3, capped at three bytes per character, a shortcut from the early 2000s that never got removed. Three bytes covers the Basic Multilingual Plane and nothing beyond it, and everything beyond it is exactly what modern input contains: every emoji (😀 is U+1F600, four UTF-8 bytes F0 9F 98 80), rare CJK characters, mathematical alphanumerics.

The failure is loud, at least. Insert an emoji into a utf8mb3 column and MySQL throws error 1366, Incorrect string value: '\xF0\x9F\x98\x80...'. If you’ve ever had a signup form die on a user whose name field contained an emoji, this was probably the layer that killed it.

The real four-byte charset is utf8mb4, shipped with MySQL 5.5.3 back in 2010 and finally the server default in MySQL 8.0 (2018), which also deprecates utf8mb3. Two migration notes from experience: convert the connection charset too, not just the columns, because a utf8mb3 connection will mangle four-byte characters on the way in even when the table is fine. And on old InnoDB setups the 767-byte index limit is why tutorials cap VARCHAR keys at 191 characters; MySQL 5.7’s larger prefix default made that folklore obsolete, but the 191s still haunt legacy schemas.

What � is telling you

The question mark in a black diamond is a real character: U+FFFD, REPLACEMENT CHARACTER, and it means something specific. A decoder hit a byte sequence that was invalid in the expected encoding and substituted � rather than aborting. So while ä says “valid bytes, wrong lens”, � says “the decoder already gave up here”.

The distinction decides whether you can recover. If � only appears at render time, the underlying bytes may still be intact, and fixing the declared encoding fixes the display. But if some process decoded with errors, replaced the bad bytes with U+FFFD and wrote the result back, the original bytes are gone. No amount of re-decoding brings them back; that’s a restore-from-backup situation. Seeing literal � stored inside a database column is one of the few encoding symptoms that should genuinely worry you.

A typical source: reading a Latin-1 file as UTF-8 (the reverse of the classic direction). Bytes like 0xE4 alone are invalid UTF-8, so instead of mojibake you get replacement characters. Ã-garbage means UTF-8 read as legacy; �-garbage usually means legacy read as UTF-8.

The BOM: useless on the web, required by Excel

The byte order mark is U+FEFF at the start of a file, which in UTF-8 encodes to EF BB BF. For UTF-16 it answers a real question (which of the two byte orders follows), but UTF-8 has no byte order, so the UTF-8 BOM answers nothing. On the web it’s pure liability: three invisible bytes that have broken PHP’s “headers already sent”, shebang lines in shell scripts, and JSON parsers that predate RFC 8259’s advice. The BOM is also the most common invisible character you’ll meet in the wild; we cover its zero-width relatives in our guide to invisible Unicode characters.

The one honest use case: CSV files for Excel. Excel does not trust a CSV to be UTF-8 unless it starts with exactly those three bytes, and without them it decodes the file with the machine’s legacy ANSI code page, turning every ä in your export into garbage on the recipient’s screen. Prepending EF BB BF is the documented workaround, one of several Excel-and-CSV landmines we walk through in why Excel ruins CSV files. If you’re generating CSV from JSON data anyway, our JSON to CSV converter runs entirely in your browser, so nothing you paste leaves your machine.

Rule of thumb we stand by: emit UTF-8 without BOM everywhere, add the BOM only when the file’s next stop is Excel.

Repairing broken characters
